Smart Gauging Station for Flood and River Level Monitoring
Manufactured by Radio Data Networks Limited
Product Buying Options
Product Capacity: Custom Built to Order
Minimum Order Quantity: 1
Additional Sales Information: These gauges are manufactured to order, with variables including the height of the gauge and the option of metric or imperial gauge boards. There is also a choice of communication media from radio telemetry, iridium satellite or cellular.
Product Description
River Flood Gauge with Integrated Stilling Tube with Real-Time Data Feeds
Unique to Radio Data Networks, this gauging station is perfect for use in applications in public areas or where flow is turbulent and a real-time upload of data is required, such as for the generation of flood warnings or the control of smart catchments.

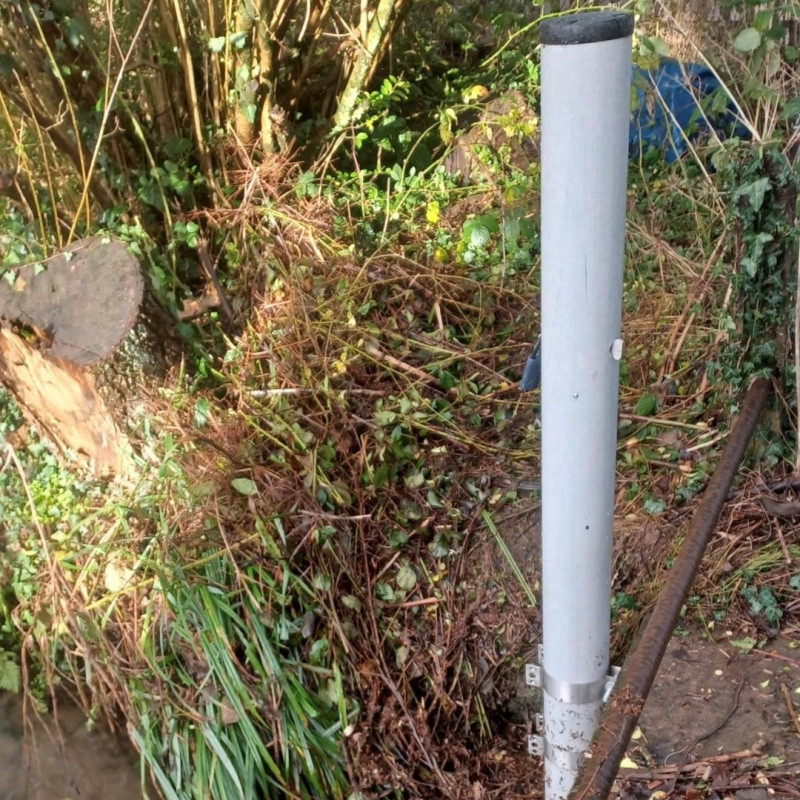

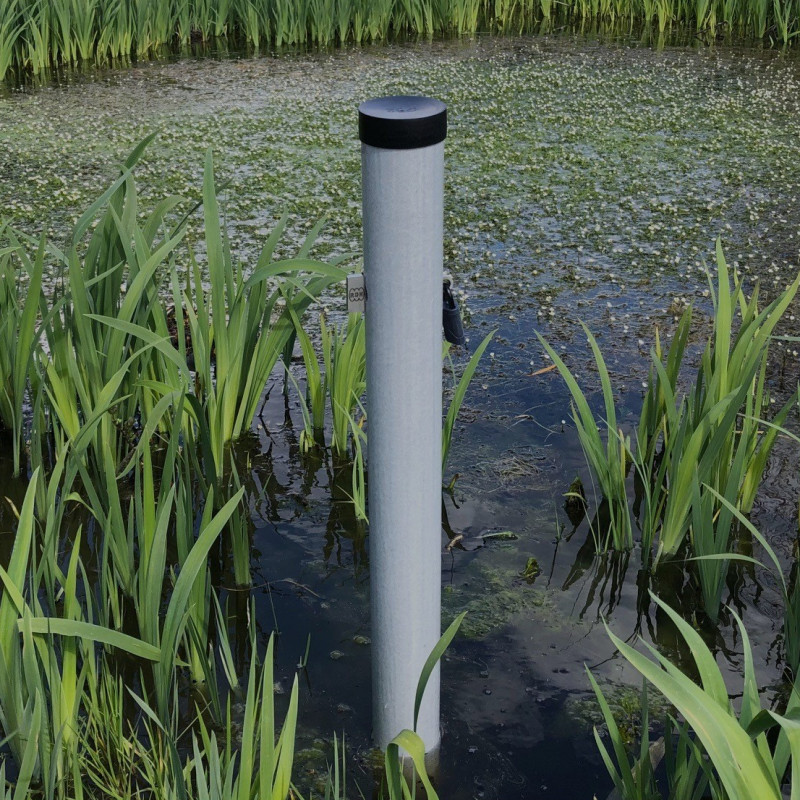

Gauging & Flood Station Housed within GRP Stilling Tube
Supplied complete with an integrated MCETRS certified Vegapulse C21 radar it features industry leading accuracy. Optionally in areas protected from frost and ice, a single or dual hydrostatic pressure transducer/s may alternatively be supplied.
For clarity, this station is not a data logger. Instead, it is a real-time telemetry system with the choice of cellular or Iridium satellite upload for this many “not-spots” around the globe. The gauge can also be supplied with local radio telemetry on RDN’s Ofcom licenced radio channel for the purpose of local control of assets such as tilting weirs.
There is a choice of sampling rate, from 5-minutes to hourly and upload rates to match. There are also bespoke options where the upload rate can accelerate when the level exceeds a preset threshold.
Specification:
- Metrology: Integrated Vegapulse C21 radar
Configuration BLE configuration of level and span
Control 16-bit analogue, 4-20mA loop control
Stilling Tube GRP, 152mm ID
Length 1.5 to 4m (Supplied to order)

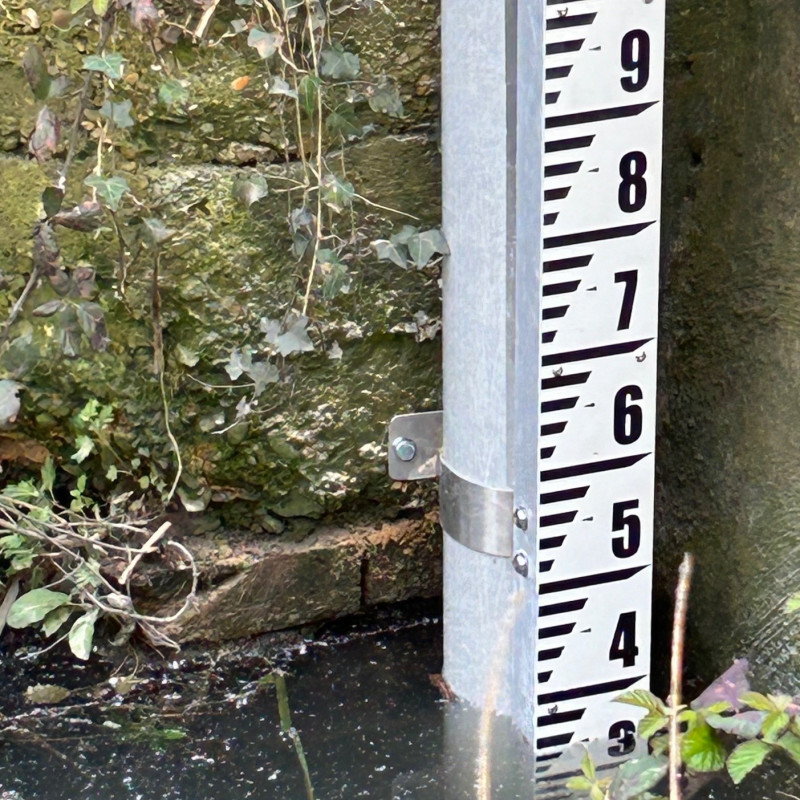

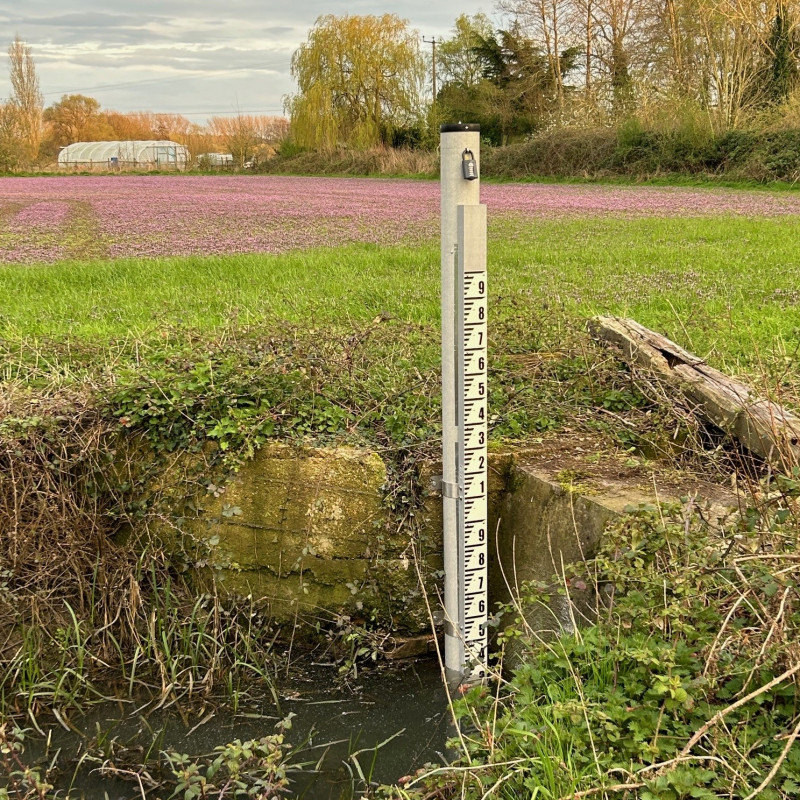

Gauge Board 100mm wide GRP screen printed metric
Battery Pack 4 x Lithium D-Cells
Telemetry Options Iridium LEO, Ofcom Licenced & Cellular

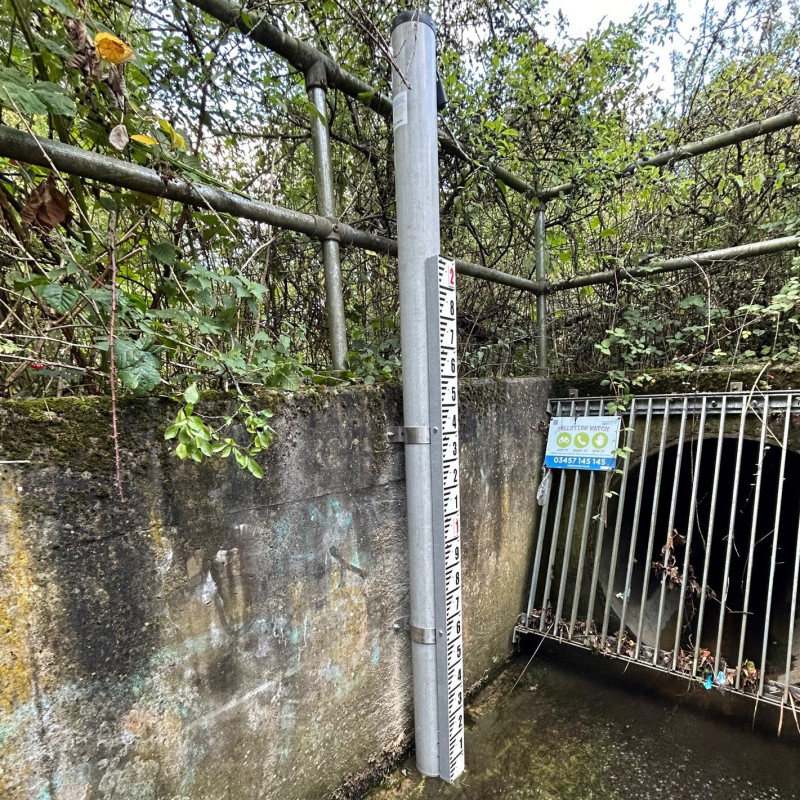

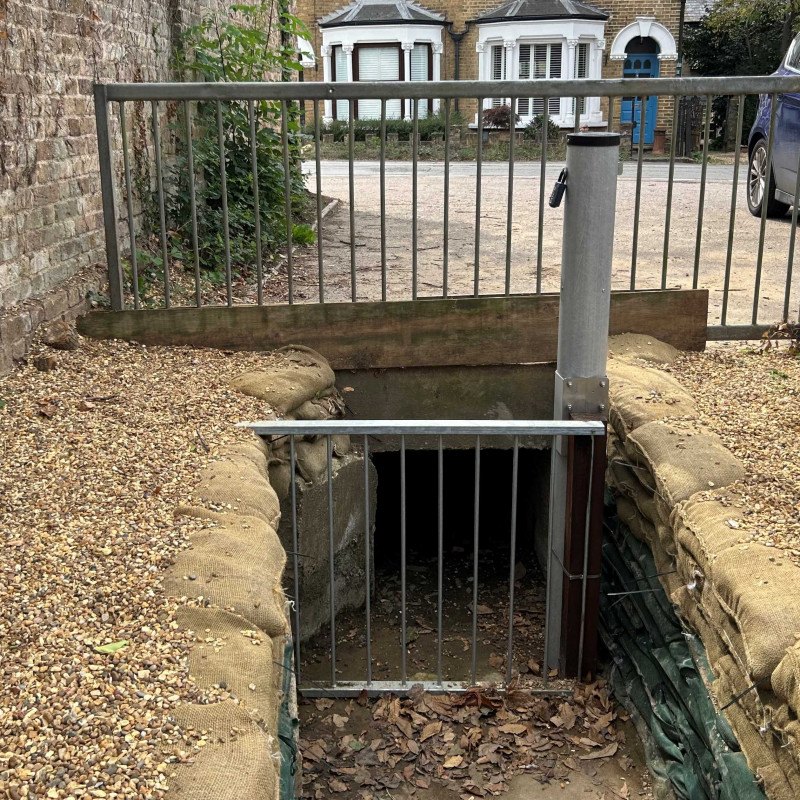

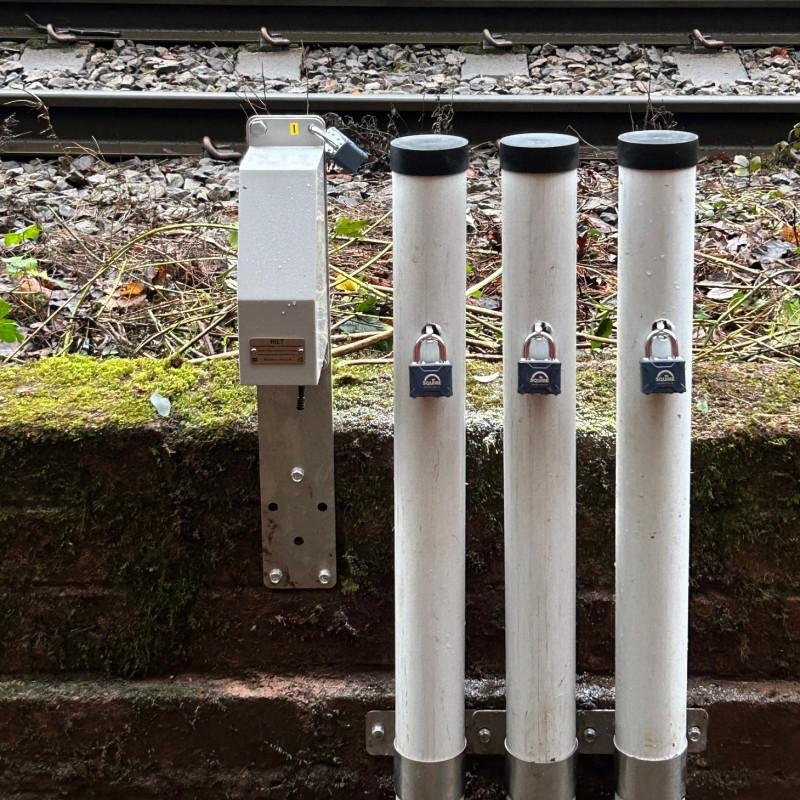

Physical security is assured through the use of stainless-steel brackets which can be clamped to handrails, bolted to culvert walls. A stainless-steel pin is also provided to lock into place the mechanism.
Applications:
- Smart Pump Inhibits: For detention lagoons & SuDS
Flood Warnings For Industry & Private Estates
Flow Analysis To support / prove flood & flow models
Abstraction Inhibits To protect receiving waters
